SRP4020TA-1R2M

J.W. Miller / Bourns
In Stock: 1,690

Can ship immediately

Pricing:
  • 1$1.42
  • 3,000$0.53752

Quote It

Technical Details

  • Series:SRP4020TA
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Carbonyl Powder
  • Inductance:1.2 µH
  • Tolerance:±20%
  • Current Rating (Amps):4.8 A
  • Current - Saturation (Isat):7.8A
  • Shielding:Shielded
  • DC Resistance (DCR):30mOhm Max



  • Q @ Freq:10 @ 100kHz
  • Frequency - Self Resonant:64MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:2-SMD
  • Supplier Device Package:2-SMD
  • Size / Dimension:0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Height - Seated (Max):0.079" (2.00mm)

Related Products


B82131A5701M000

FIXED IND 14UH 700MA 760 MOHM TH

  • 1: $1.30000
  • 2000: $ 0.59216
  • 4000: $0.57366

B82131A5202M000

FIXED IND 3UH 2A 90 MOHM TH

  • 1: $1.30000
  • 2000: $ 0.59216
  • 4000: $0.57366

CDR7D43MNNP-680NC

FIXED IND 68UH 750MA 363.8 MOHM

CDR7D43MNNP-680NC Datasheet
  • 1: $1.30000
  • 1000: $ 0.59200
  • 3000: $0.57350

SRP7030-R68M

FIXED IND 680NH 15.5A 5.5MOHM SM

SRP7030-R68M Datasheet
  • 1: $1.30000
  • 1000: $ 0.50320
  • 3000: $0.49210

SRP4020TA-220M

FIXED IND 22UH 1.2A 500 MOHM SMD

SRP4020TA-220M Datasheet
  • 1: $1.30000
  • 3000: $0.59200

SRP7030-R10M

FIXED IND 100NH 32.5A 1.7MOHM SM

SRP7030-R10M Datasheet
  • 1: $1.30000
  • 1000: $ 0.50320
  • 3000: $0.49210

SRR1260A-8R2Y

FIXED IND 8.2UH 5.7A 19.5MOHM SM

SRR1260A-8R2Y Datasheet
  • 1: $1.44000
  • 600: $0.57182
  • 1200: $0.50829

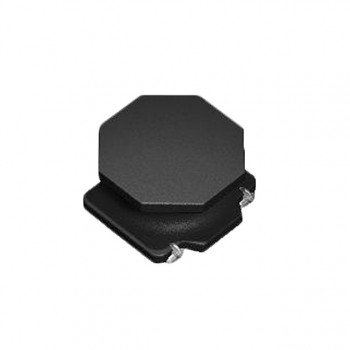

MDPK5050T1R0MM

FIXED IND 1UH 4.3A 40 MOHM SMD

MDPK5050T1R0MM Datasheet
  • 1: $1.31000
  • 1000: $ 0.33048
  • 3000: $0.31104

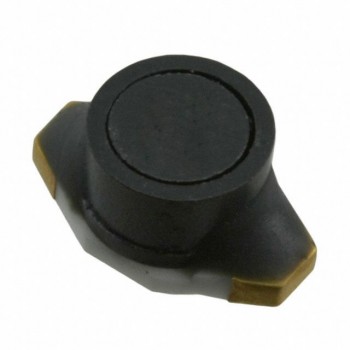

SRR6603-3R3ML
