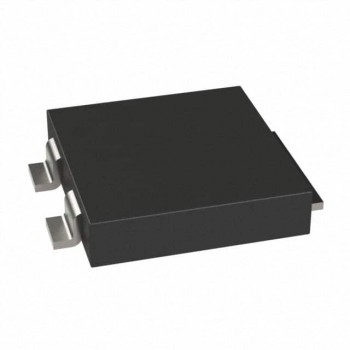

74477001
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.2UH 12A 7 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 1,444
Can ship immediately
Pricing:
- 1$2.25
- 500$2.25
Quote It
Technical Details
- Series:WE-PD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.2 µH
- Tolerance:-20%, +40%
- Current Rating (Amps):12 A
- Current - Saturation (Isat):16.6A
- Shielding:Shielded
- DC Resistance (DCR):7mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:45MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
- Height - Seated (Max):0.315" (8.00mm)
