CDRH70D45BT150NP-220MC

Sumida Corporation
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 22UH 2.6A 69MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 1,848

Can ship immediately

Pricing:
  • 1$2.37

Quote It

Technical Details

  • Series:CDRH70D45B/T150
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:-
  • Material - Core:Ferrite
  • Inductance:22 µH
  • Tolerance:±20%
  • Current Rating (Amps):2.6 A
  • Current - Saturation (Isat):2A
  • Shielding:Shielded
  • DC Resistance (DCR):69mOhm



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.303" L x 0.287" W (7.70mm x 7.30mm)
  • Height - Seated (Max):0.189" (4.80mm)

Related Products


CDEIR6D31FHF-4R7MC

FIXED IND 4.7UH 4.7A 26 MOHM SMD

CDEIR6D31FHF-4R7MC Datasheet
  • 1: $2.37000
  • 1500: $1.72068
  • 3000: $1.66518

2500-12J

FIXED IND 470UH 108MA 11 OHM TH

2500-12J Datasheet
  • 1: $2.37000
  • 1000: $ 0.78120
  • 3000: $0.75600

74437321082

FIXED IND 8.2UH 1.3A 376 MOHM

  • 1: $2.39000
  • 4000: $2.33216

74437321015

FIXED IND 1.5UH 3A 63.3 MOHM SMD

  • 1: $2.39000
  • 4000: $ 1.51200

74437321033

FIXED IND 3.3UH 2.3A 97 MOHM SMD

  • 1: $2.39000
  • 4000: $ 1.51200

74437321022

FIXED IND 2.2UH 2.5A 80 MOHM SMD

  • 1: $2.39000
  • 4000: $ 1.51200

744373210010

FIXED IND 100NH 8.1A 5.5 MOHM

  • 1: $2.39000
  • 4000: $ 1.51200

74437321100

FIXED IND 10UH 1.2A 463 MOHM SMD

  • 1: $2.39000
  • 4000: $ 1.51200

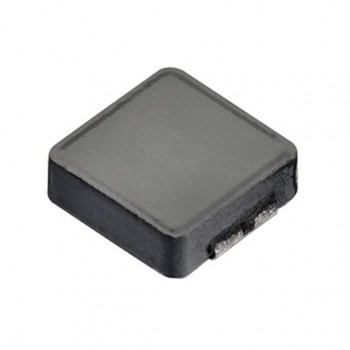

74437321047

FIXED IND 4.7UH 1.9A 145 MOHM

  • 1: $2.39000
  • 4000: $ 1.51200

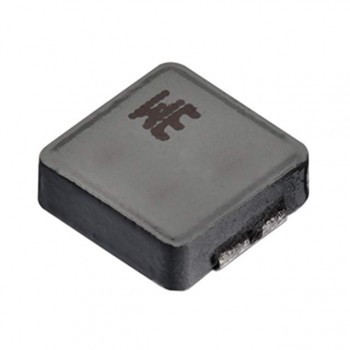

74437334047
