RLF7045T-220M1R4-D

TDK Corporation
In Stock: 1,533

Can ship immediately

Pricing:
  • 1$2.77
  • 1,000$1.32026
  • 3,000$1.27766
  • 5,000$1.23508

Quote It

Technical Details

  • Series:RLF-D
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Not For New Designs
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:22 µH
  • Tolerance:±20%
  • Current Rating (Amps):1.4 A
  • Current - Saturation (Isat):1.5A
  • Shielding:Shielded
  • DC Resistance (DCR):98.4mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.287" L x 0.268" W (7.30mm x 6.80mm)
  • Height - Seated (Max):0.189" (4.80mm)

Related Products


DRA73-471-R

FIXED IND 470UH 326MA 2.67 OHM

DRA73-471-R Datasheet
  • 1: $2.77000
  • 1350: $1.29146
  • 2700: $1.24980

RLF7045T-470M1R0-D

FIXED IND 47UH 1A 192 MOHM SMD

RLF7045T-470M1R0-D Datasheet
  • 1: $2.77000
  • 1000: $1.32026
  • 3000: $1.27766

DRA73-1R0-R

FIXED IND 1UH 6.5A 6.7 MOHM SMD

DRA73-1R0-R Datasheet
  • 1: $2.77000
  • 1350: $1.29146
  • 2700: $1.24980

2500R-44J

FIXED IND 2.2MH 68MA 30 OHM TH

2500R-44J Datasheet
  • 1: $2.66332
  • 1000: $2.22232

74437336056

FIXED IND 5.6UH 3.3A 63 MOHM SMD

  • 1: $2.55000
  • 2000: $ 1.61300

74437336012

FIXED IND 1.2UH 6.5A 16 MOHM SMD

  • 1: $2.55000
  • 2000: $ 1.61300

744316022

FIXED IND 220NH 20A 1.25 MOHM

  • 1: $2.55000
  • 1500: $ 1.61301

74437336068

FIXED IND 6.8UH 2.6A 76.2 MOHM

  • 1: $2.55000
  • 2000: $ 1.61300

74437336015

FIXED IND 1.5UH 5.6A 25 MOHM SMD

  • 1: $2.55000
  • 2000: $ 1.61300

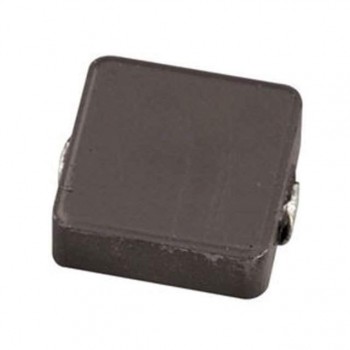

74437336010
