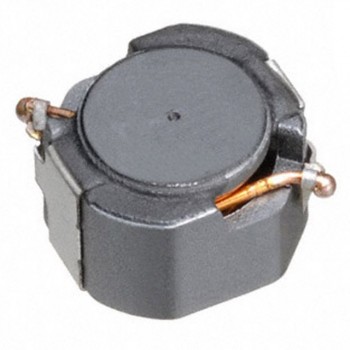

LGJ7045TC-3R3N-H
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 4.1A 16.4 MOHM
- CategoryFixed Inductors
- Datasheet LGJ7045TC-3R3N-H Datasheet
-
ECAD Model
- Share
In Stock: 1,077
Can ship immediately
Pricing:
- 1$3.93
- 1,000$2.13406
- 3,000$2.06292
- 5,000$1.99179
Quote It
Technical Details
- Series:LGJ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.3 µH
- Tolerance:±30%
- Current Rating (Amps):4.1 A
- Current - Saturation (Isat):5A
- Shielding:Shielded
- DC Resistance (DCR):16.4mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.283" L x 0.272" W (7.20mm x 6.90mm)
- Height - Seated (Max):0.177" (4.50mm)
