LGJ12575TS-1R2N8R2-H
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.2UH 8.2A 5.1 MOHM
- CategoryFixed Inductors
- Datasheet LGJ12575TS-1R2N8R2-H Datasheet
-
ECAD Model
- Share
In Stock: 585
Can ship immediately
Pricing:
- 1$7.26
- 500$4.5012
- 1,000$4.2108
- 2,500$4.0656
Quote It
Technical Details
- Series:LGJ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.2 µH
- Tolerance:±30%
- Current Rating (Amps):8.2 A
- Current - Saturation (Isat):13A
- Shielding:Shielded
- DC Resistance (DCR):5.1mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height - Seated (Max):0.295" (7.50mm)
Related Products
FIXED IND 22UH 4A 26.3 MOHM SMD

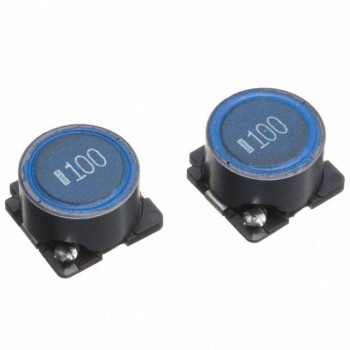

LGJ12575TS-220M4R0-H Datasheet- 1: $7.26000
