• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 2.2UH 8.6A 8 MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 902

Can ship immediately

Pricing:
  • 1$2.12
  • 500$1.3
  • 1,000$1.11

Quote It

Technical Details

  • Series:WE-PD Performance
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:2.2 µH
  • Tolerance:±30%
  • Current Rating (Amps):8.6 A
  • Current - Saturation (Isat):9.5A
  • Shielding:Shielded
  • DC Resistance (DCR):8mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:53MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Height - Seated (Max):0.197" (5.00mm)

Related Products


744771212

FIXED IND 120UH 1.3A 170 MOHM

  • 1: $2.12000
  • 500: $ 1.30000
  • 1000: $1.11000

744771270

FIXED IND 270UH 890MA 460 MOHM

  • 1: $2.12000
  • 500: $ 1.30000
  • 1000: $1.11000

74477126

FIXED IND 680UH 550MA 1.2 OHM

  • 1: $2.12000

744732471

FIXED IND 470UH 450MA 1.7 OHM TH

  • 1: $1.30000
  • 10: $1.23400
  • 50: $1.14900

744732470

FIXED IND 47UH 1.8A 140 MOHM TH

  • 1: $1.30000
  • 10: $1.23400
  • 50: $1.14900

744732331

FIXED IND 330UH 600MA 1.2 OHM TH

  • 1: $1.30000
  • 10: $1.23400
  • 50: $1.14900

AIAP-03-103K

FIXED IND 10MH 266MA 7.3 OHM TH

AIAP-03-103K Datasheet
  • 1: $1.32000
  • 10: $1.22571
  • 100: $0.88629

IHLP5050FDER220M5A

FIXED IND 22UH 8.3A 33.49 MOHM

IHLP5050FDER220M5A Datasheet
  • 1: $2.43000
  • 250: $2.30059
  • 500: $2.22870

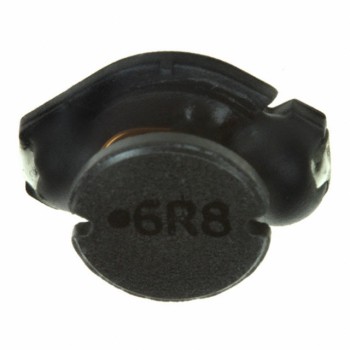

74456068

FIXED IND 6.8UH 3.8A 34 MOHM SMD

  • 1: $1.94000
  • 600: $ 1.35500

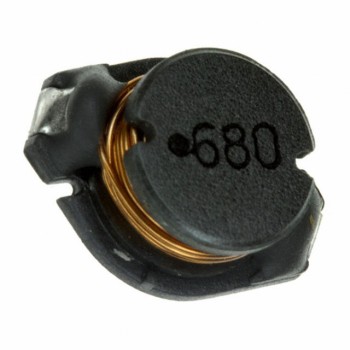

74456168
