• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 10MH 230MA 9.7 OHM TH
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 432

Can ship immediately

Pricing:
  • 1$1.79
  • 10$1.54
  • 70$1.331
  • 140$1.166
  • 1,120$1.045

Quote It

Technical Details

  • Series:WE-TIF
  • Package:Tray
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:10 mH
  • Tolerance:±5%
  • Current Rating (Amps):230 mA
  • Current - Saturation (Isat):290mA
  • Shielding:Unshielded
  • DC Resistance (DCR):9.7Ohm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:260kHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:10 kHz
  • Features:-
  • Mounting Type:Through Hole
  • Package / Case:Radial, Vertical Cylinder, 4 Leads
  • Supplier Device Package:-
  • Size / Dimension:0.433" Dia (11.00mm)
  • Height - Seated (Max):0.669" (17.00mm)

Related Products


7447221472

FIXED IND 4.7MH 340MA 4.6 OHM TH

  • 1: $1.79000
  • 10: $1.54000
  • 70: $1.33100

7447221101

FIXED IND 100UH 2.45A 100 MOHM

  • 1: $1.79000
  • 10: $1.54000
  • 70: $1.33100

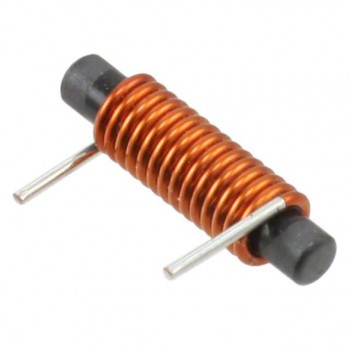

744710203

FIXED IND 2UH 2.5A 11 MOHM TH

  • 1: $1.83000
  • 10: $1.80500
  • 50: $1.63100

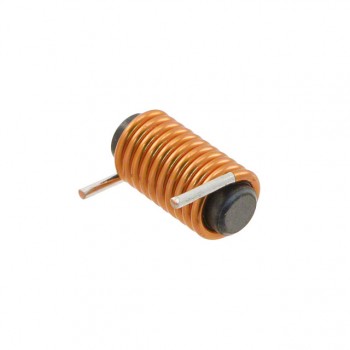

744710210

FIXED IND 2UH 10A 3.8 MOHM TH

  • 1: $1.83000
  • 10: $1.80500
  • 50: $1.63100

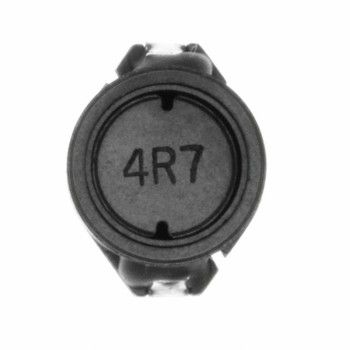

7445404

FIXED IND 4.7UH 2.7A 40 MOHM SMD

  • 1: $2.64000
  • 600: $ 1.84800

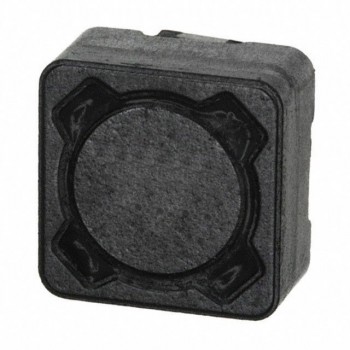

784770330

FIXED IND 33UH 3.4A 55MOHM SMD

  • 1: $2.64000

784770331

FIXED IND 330UH 1A 468MOHM SMD

  • 1: $2.64000

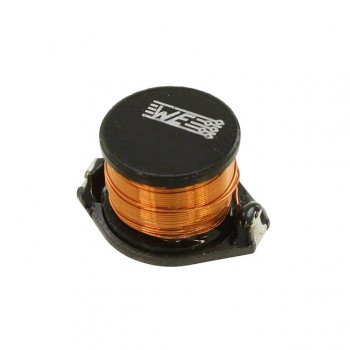

74458306

FIXED IND 6MH 400MA 6 OHM SMD

  • 1: $2.38000
  • 200: $ 1.85500

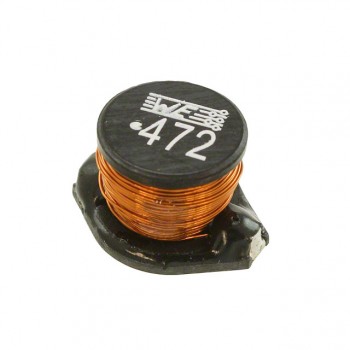

74458304

FIXED IND 4.7MH 400MA 4.8 OHM

  • 1: $2.38000
  • 200: $ 1.85500

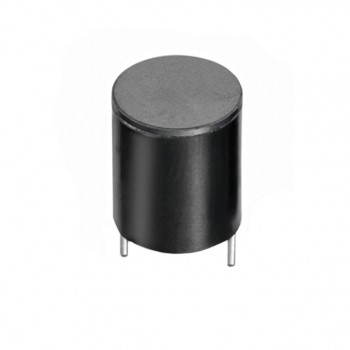

744750230150
