SRR1806-221M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 1A 510 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRR1806-221M Datasheet
-
ECAD Model
- Share
In Stock: 391
Can ship immediately
Pricing:
- 1$1.19
- 250$0.55336
- 500$0.4743
- 750$0.44795
- 1,250$0.4216
- 2,500$0.4123
Quote It
Technical Details
- Series:SRR1806
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:220 µH
- Tolerance:±20%
- Current Rating (Amps):1 A
- Current - Saturation (Isat):1.9A
- Shielding:Shielded
- DC Resistance (DCR):510mOhm
- Q @ Freq:29 @ 796kHz
- Frequency - Self Resonant:3.5MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
- Height - Seated (Max):0.280" (7.10mm)
Related Products
FIXED IND 100UH 1.8A 140.4 MOHM
SLF12555T-101M1R1-PF Datasheet- 1: $1.40000
- 500: $ 0.72000
- 1000: $0.64000

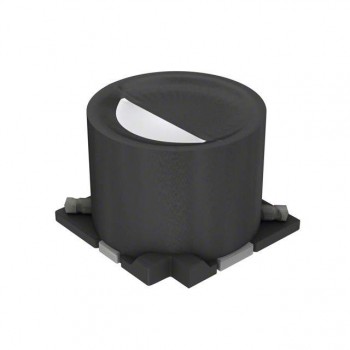

FIXED IND 3.3UH 3.7A 19.32 MOHM
