MDH6045C-151MA=P3

TOKO / Murata
In Stock: 1,161

Can ship immediately

Pricing:
  • 1$1.54

Quote It

Technical Details

  • Series:MDH6045C
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Not For New Designs
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:150 µH
  • Tolerance:±20%
  • Current Rating (Amps):540 mA
  • Current - Saturation (Isat):520mA
  • Shielding:Unshielded
  • DC Resistance (DCR):520mOhm



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.248" L x 0.236" W (6.30mm x 6.00mm)
  • Height - Seated (Max):0.189" (4.80mm)

Related Products

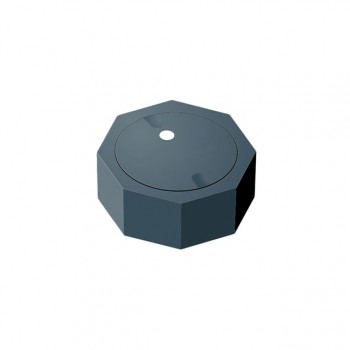

SRU1063A-101Y
