SRP1250-R47M

J.W. Miller / Bourns
In Stock: 1,112

Can ship immediately

Pricing:
  • 1$1.72
  • 500$0.7344
  • 1,000$0.6528
  • 2,500$0.6384

Quote It

Technical Details

  • Series:SRP1250
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Iron
  • Inductance:470 nH
  • Tolerance:±20%
  • Current Rating (Amps):38 A
  • Current - Saturation (Isat):65A
  • Shielding:Shielded
  • DC Resistance (DCR):1.3mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:-
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.547" L x 0.531" W (13.90mm x 13.50mm)
  • Height - Seated (Max):0.232" (5.90mm)

Related Products


SRR1210A-3R3Y

FIXED IND 3.3UH 9A 10 MOHM SMD

SRR1210A-3R3Y Datasheet
  • 1: $1.65000
  • 250: $0.76578
  • 500: $0.65637

7449150111

FIXED IND 111NH 22A 2.11 MOHM

  • 1: $1.51000
  • 550: $ 0.90300

MPX1D0650LR68

FIXED IND 680NH 18.8A 4.1 MOHM

  • 1: $1.90000

6000-2R2M-RC

FIXED IND 2.2UH 6.5A 21 MOHM TH

6000-2R2M-RC Datasheet
  • 1: $0.92000
  • 10: $0.85908
  • 100: $0.62088

6000-271K-RC

FIXED IND 270UH 900MA 750MOHM TH

6000-271K-RC Datasheet
  • 1: $0.92000
  • 10: $0.85908
  • 100: $0.62088

6000-120K-RC

FIXED IND 12UH 3.1A 50 MOHM TH

6000-120K-RC Datasheet
  • 1: $0.92000
  • 10: $0.85908
  • 100: $0.62088

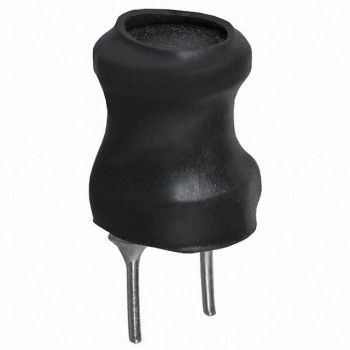

RL822-100K-RC
