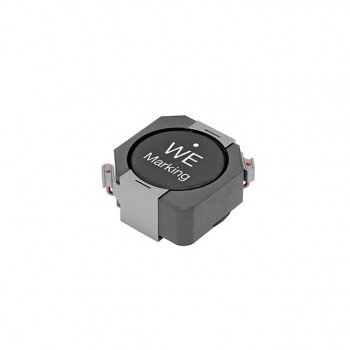

7447706100
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10UH 5.8A 20MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 778
Can ship immediately
Pricing:
- 1$1.75
Quote It
Technical Details
- Series:WE-PD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:-
- Inductance:10 µH
- Tolerance:±20%
- Current Rating (Amps):5.8 A
- Current - Saturation (Isat):7.8A
- Shielding:Shielded
- DC Resistance (DCR):20mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:17.6MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.551" L x 0.315" W (14.00mm x 8.00mm)
- Height - Seated (Max):0.630" (16.00mm)
