• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 22UH 4A 47 MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 444

Can ship immediately

Pricing:
  • 1$1.747
  • 250$1.747

Quote It

Technical Details

  • Series:WE-PD4
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:22 µH
  • Tolerance:±15%
  • Current Rating (Amps):4 A
  • Current - Saturation (Isat):6.5A
  • Shielding:Unshielded
  • DC Resistance (DCR):47mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:14MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
  • Height - Seated (Max):0.307" (7.80mm)

Related Products


UP4B-3R3-R

FIXED IND 3.3UH 11A 5.7 MOHM SMD

UP4B-3R3-R Datasheet
  • 1: $2.81000
  • 275: $ 1.70640
  • 550: $1.61160

SBC7-680-222

FIXED IND 68UH 2.2A 90 MOHM TH

SBC7-680-222 Datasheet
  • 1: $1.75000
  • 1000: $ 0.83390

SBC7-220-432

FIXED IND 22UH 4.3A 30 MOHM TH

SBC7-220-432 Datasheet
  • 1: $1.75000
  • 1000: $ 0.83390

SBC7-101-192

FIXED IND 100UH 1.9A 120 MOHM TH

SBC7-101-192 Datasheet
  • 1: $1.75000
  • 1000: $ 0.83390

RL110-101K-RC

FIXED IND 100UH 1.7A 160 MOHM TH

RL110-101K-RC Datasheet
  • 1: $1.78000
  • 10: $1.64526
  • 100: $1.15181

7447221471

FIXED IND 470UH 1.1A 460 MOHM TH

  • 1: $1.79000
  • 10: $1.54000
  • 70: $1.33100

7447221332

FIXED IND 3.3MH 400MA 3.2 OHM TH

  • 1: $1.79000
  • 10: $1.54000
  • 70: $1.33100

7447221221

FIXED IND 220UH 1.65A 220 MOHM

  • 1: $1.79000
  • 10: $1.54000
  • 70: $1.33100

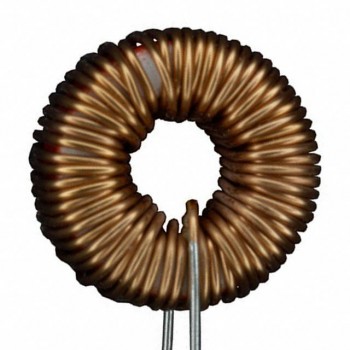

7447028

FIXED IND 150UH 1A 130 MOHM TH

  • 1: $1.81000
  • 300: $ 1.36500

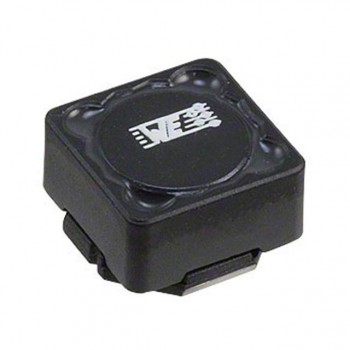

7687714222
