• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 22UH 7A 13.6MOHM TH
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 203

Can ship immediately

Pricing:
  • 1$6.57

Quote It

Technical Details

  • Series:WE-HIDA
  • Package:Tray
  • Part Status:Active
  • Type:-
  • Material - Core:-
  • Inductance:22 µH
  • Tolerance:±20%
  • Current Rating (Amps):7 A
  • Current - Saturation (Isat):7A
  • Shielding:Unshielded
  • DC Resistance (DCR):13.6mOhm



  • Q @ Freq:-
  • Frequency - Self Resonant:9MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Through Hole
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.827" L x 0.571" W (21.00mm x 14.50mm)
  • Height - Seated (Max):0.618" (15.70mm)

Related Products


74441521082

FIXED IND 8.2UH 10A 6.2MOHM TH

  • 1: $6.57000

DSH-22-0003

FIXED INDUCTOR 1A 300 MOHM TH

DSH-22-0003 Datasheet
  • 1: $6.68000
  • 10: $6.24094
  • 20: $5.80585

SNG-25DA-086

FIXED INDUCTOR 86UH 20 MOHM

  • 1: $6.78000

SNG-25DB-086

FIXED IND 86UH 20 MOHM CHASSIS

  • 1: $6.78000

78436432015

FIXED IND 1.5UH 47A 0.6 MOHM SMD

  • 1: $6.93000

TCK-089

FIXED IND 33UH 880MA 230MOHM SMD

TCK-089 Datasheet
  • 1: $7.27000

IHD1EB270L

FIXED IND 27UH 1.9A 70 MOHM TH

IHD1EB270L Datasheet
  • 1: $7.54000
  • 10: $6.85000
  • 25: $6.16520

DFSG-25-0001

FIXED INDUCTOR 2A 260 MOHM TH

DFSG-25-0001 Datasheet
  • 1: $7.61000
  • 10: $7.11193
  • 20: $6.61584

78436432010

FIXED IND 1UH 47A 0.6 MOHM SMD

  • 1: $7.62000

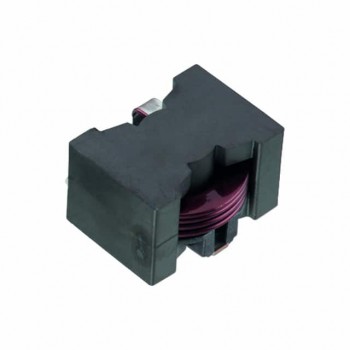

78436432100
