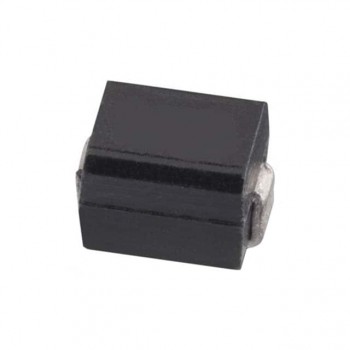

PM1608S-1R5M-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 2.8A 45 MOHM SMD
- CategoryFixed Inductors
- Datasheet PM1608S-1R5M-RC Datasheet
-
ECAD Model
- Share
In Stock: 772
Can ship immediately
Pricing:
- 1$1.9
- 600$0.912
Quote It
Technical Details
- Series:PM1608S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.5 µH
- Tolerance:±20%
- Current Rating (Amps):2.8 A
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):45mOhm Max
- Q @ Freq:30 @ 200kHz
- Frequency - Self Resonant:125MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.260" L x 0.173" W (6.60mm x 4.40mm)
- Height - Seated (Max):0.118" (3.00mm)
