AIMC-0402-10NJ-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10NH 300MA 420 MOHM
- CategoryFixed Inductors
- Datasheet AIMC-0402-10NJ-T Datasheet
-
ECAD Model
- Share
In Stock: 6,850
Can ship immediately
Pricing:
- 1$0.1
- 10,000$0.01445
- 30,000$0.0136
- 50,000$0.01318
- 100,000$0.01275
Quote It
Technical Details
- Series:AIMC-0402
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ceramic
- Inductance:10 nH
- Tolerance:±5%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):420mOhm Max
- Q @ Freq:8 @ 100MHz
- Frequency - Self Resonant:3.2GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.026" (0.65mm)
Related Products
FIXED IND 18NH 200MA 1.4 OHM SMD
MLG0603P18NJT000 Datasheet- 1: $0.10000
- 15000: $ 0.04368
- 30000: $0.04232

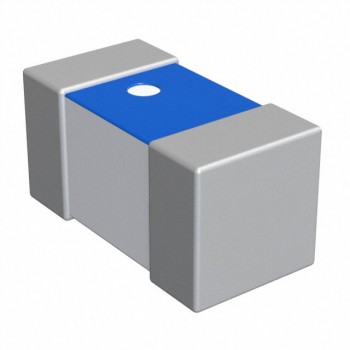

FIXED IND 1NH 600MA 150 MOHM SMD
