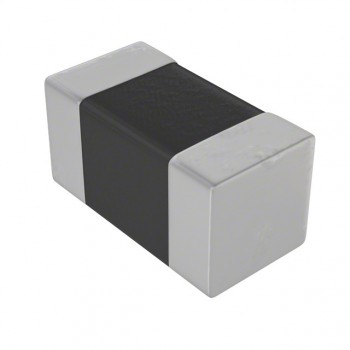

HK100522NJ-T
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22NH 300MA 600 MOHM
- CategoryFixed Inductors
- Datasheet HK100522NJ-T Datasheet
-
ECAD Model
- Share
In Stock: 718
Can ship immediately
Pricing:
- 1$0.1
- 10,000$0.0085
- 30,000$0.008
- 50,000$0.00775
- 100,000$0.0075
Quote It
Technical Details
- Series:HK
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ferrite
- Inductance:22 nH
- Tolerance:±5%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):600mOhm Max
- Q @ Freq:8 @ 100MHz
- Frequency - Self Resonant:1.9GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.022" (0.55mm)
