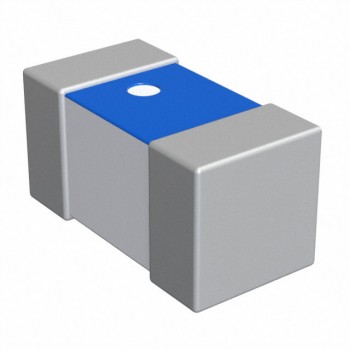

LQP03TQ2N6B02D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.6NH 550MA 150 MOHM
- CategoryFixed Inductors
- Datasheet LQP03TQ2N6B02D Datasheet
-
ECAD Model
- Share
In Stock: 1,142
Can ship immediately
Pricing:
- 1$0.1
- 15,000$0.01728
- 30,000$0.01674
- 75,000$0.0162
- 105,000$0.01566
Quote It
Technical Details
- Series:LQP03
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Thick Film
- Material - Core:Non-Magnetic
- Inductance:2.6 nH
- Tolerance:±0.1nH
- Current Rating (Amps):550 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm Max
- Q @ Freq:17 @ 500MHz
- Frequency - Self Resonant:10GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201 (0603 Metric)
- Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):0.013" (0.33mm)
