MLG0603P30NJT000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 30NH 130MA 2.2 OHM SMD
- CategoryFixed Inductors
- Datasheet MLG0603P30NJT000 Datasheet
-
ECAD Model
- Share
In Stock: 15,819
Can ship immediately
Pricing:
- 1$0.14
- 15,000$0.04368
Quote It
Technical Details
- Series:MLG-P
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Non-Magnetic
- Inductance:30 nH
- Tolerance:±5%
- Current Rating (Amps):130 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):2.2Ohm Max
- Q @ Freq:10 @ 300MHz
- Frequency - Self Resonant:1.8GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201 (0603 Metric)
- Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):0.013" (0.33mm)
Related Products
FIXED IND 1.9NH 600MA 100 MOHM
MLG0603P1N9ST000 Datasheet- 1: $0.14000
- 15000: $ 0.04368
- 30000: $0.04232

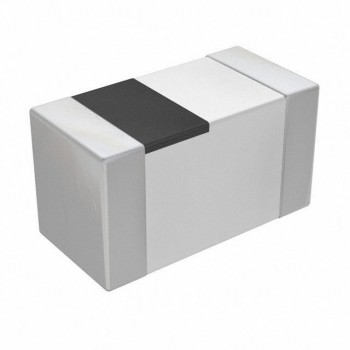

FIXED IND 4.7NH 900MA 138 MOHM
