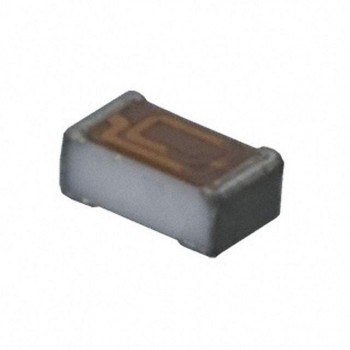

LQW15AN2N7C00D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.7NH 850MA 50 MOHM
- CategoryFixed Inductors
- Datasheet LQW15AN2N7C00D Datasheet
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
- 1$0.16
- 10,000$0.0504
- 30,000$0.04883
- 50,000$0.04725
- 100,000$0.04568
Quote It
Technical Details
- Series:LQW15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Non-Magnetic
- Inductance:2.7 nH
- Tolerance:±0.2nH
- Current Rating (Amps):850 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):50mOhm Max
- Q @ Freq:20 @ 250MHz
- Frequency - Self Resonant:15GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:-
- Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
- Height - Seated (Max):0.024" (0.60mm)
