3-2176075-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.9NH 150MA 1.2 OHM
- CategoryFixed Inductors
- Datasheet 3-2176075-9 Datasheet
-
ECAD Model
- Share
In Stock: 555
Can ship immediately
Pricing:
- 1$0.19
- 1,000$0.07718
- 3,000$0.06615
- 5,000$0.06248
- 10,000$0.0588
- 25,000$0.05696
- 50,000$0.05513
- 100,000$0.05329
Quote It
Technical Details
- Series:3640, Sigma Inductors
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Thin Film
- Material - Core:-
- Inductance:3.9 nH
- Tolerance:±0.2nH
- Current Rating (Amps):150 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.2Ohm Max
- Q @ Freq:8 @ 500MHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201
- Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):0.011" (0.28mm)
Related Products

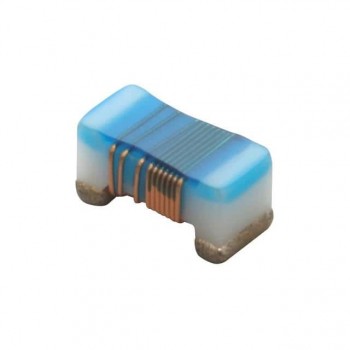

FIXED IND 430NH 150MA 3.4 OHM
- 1: $0.20000
- 4000: $ 0.06200

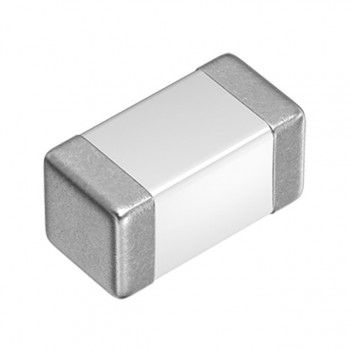

FIXED IND 33NH 100MA 1.8 OHM SMD
