LQW18AS5N1G0ZD
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.1NH 700MA 140 MOHM
- CategoryFixed Inductors
- Datasheet LQW18AS5N1G0ZD Datasheet
-
ECAD Model
- Share
In Stock: 245
Can ship immediately
Pricing:
- 1$0.25
- 4,000$0.09205
- 8,000$0.08693
- 12,000$0.08182
- 28,000$0.07926
- 100,000$0.07415
Quote It
Technical Details
- Series:LQW18
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Non-Magnetic
- Inductance:5.1 nH
- Tolerance:±2%
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):140mOhm Max
- Q @ Freq:20 @ 250MHz
- Frequency - Self Resonant:5.7GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.039" (1.00mm)
Related Products
FIXED IND 22UH 180MA 3.2 OHM SMD
NL453232T-220J-PF Datasheet- 1: $0.43000
- 500: $ 0.22660
- 1000: $0.18343
FIXED IND 220UH 100MA 10 OHM SMD

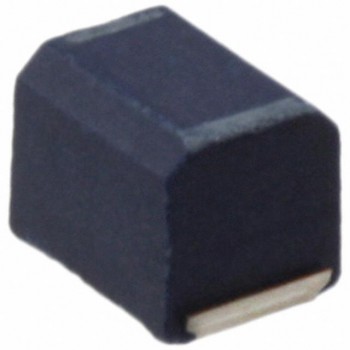

NL453232T-221J-PF Datasheet- 1: $0.43000
