CB2016T220K
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 370MA 1.3 OHM SMD
- CategoryFixed Inductors
- Datasheet CB2016T220K Datasheet
-
ECAD Model
- Share
In Stock: 708
Can ship immediately
Pricing:
- 1$0.23
- 2,000$0.0966
- 4,000$0.0828
- 6,000$0.0782
- 10,000$0.0736
- 50,000$0.069
- 100,000$0.0667
Quote It
Technical Details
- Series:CB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±10%
- Current Rating (Amps):370 mA
- Current - Saturation (Isat):165mA
- Shielding:Unshielded
- DC Resistance (DCR):1.3Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:16MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0806 (2016 Metric)
- Supplier Device Package:0806 (2016 Metric)
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.071" (1.80mm)
Related Products

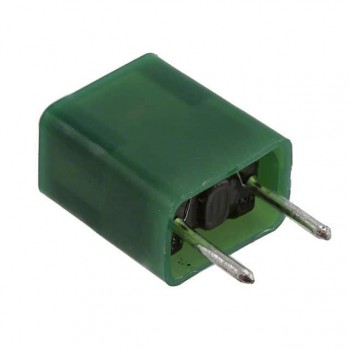

FIXED IND 1.6UH 30MA 1 OHM TH
