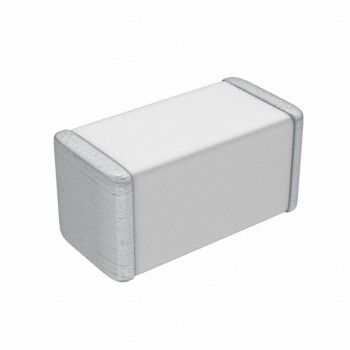

MLK1005S3N6ST000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.6NH 400MA 250 MOHM
- CategoryFixed Inductors
- Datasheet MLK1005S3N6ST000 Datasheet
-
ECAD Model
- Share
In Stock: 9,879
Can ship immediately
Pricing:
- 1$0.25
- 10,000$0.01667
- 30,000$0.01615
- 50,000$0.01562
- 100,000$0.0151
Quote It
Technical Details
- Series:MLK
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Multilayer
- Material - Core:Non-Magnetic
- Inductance:3.6 nH
- Tolerance:±0.3nH
- Current Rating (Amps):400 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):250mOhm Max
- Q @ Freq:7 @ 100MHz
- Frequency - Self Resonant:6.8GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.024" (0.60mm)
