LQW15AN2N2G8ZD
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2NH 2.53A 22 MOHM
- CategoryFixed Inductors
- Datasheet LQW15AN2N2G8ZD Datasheet
-
ECAD Model
- Share
In Stock: 546
Can ship immediately
Pricing:
- 1$0.27
- 10,000$0.0882
- 30,000$0.08544
- 50,000$0.08269
- 100,000$0.07993
Quote It
Technical Details
- Series:LQW15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Non-Magnetic
- Inductance:2.2 nH
- Tolerance:±2%
- Current Rating (Amps):2.53 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):22mOhm Max
- Q @ Freq:30 @ 250MHz
- Frequency - Self Resonant:15.5GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
- Height - Seated (Max):0.024" (0.60mm)
Related Products

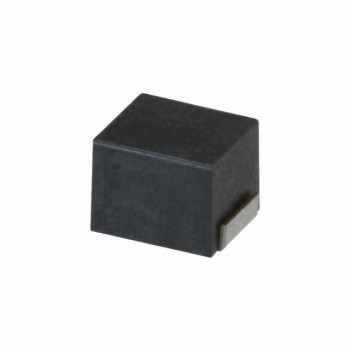

FIXED IND 1UH 800MA 237.5MOHM SM
