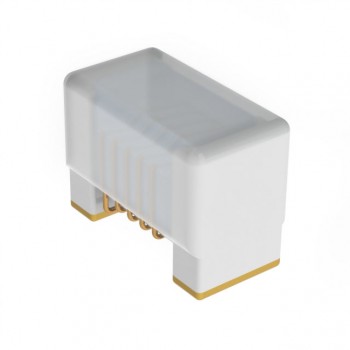

CW105550A-19NJ
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 19NH 480MA 202MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 1,159
Can ship immediately
Pricing:
- 1$0.25
Quote It
Technical Details
- Series:CW105550A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Ceramic
- Inductance:19 nH
- Tolerance:±5%
- Current Rating (Amps):480 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):202mOhm Max
- Q @ Freq:26 @ 250MHz
- Frequency - Self Resonant:3.04GHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
- Height - Seated (Max):0.024" (0.60mm)
