NLCV25T-R10M-PFR
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100NH 1.89A 48 MOHM
- CategoryFixed Inductors
- Datasheet NLCV25T-R10M-PFR Datasheet
-
ECAD Model
- Share
In Stock: 965
Can ship immediately
Pricing:
- 1$0.25
- 2,000$0.099
- 4,000$0.0935
- 6,000$0.088
- 10,000$0.08525
- 50,000$0.07975
- 100,000$0.077
Quote It
Technical Details
- Series:NLCV-PF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 nH
- Tolerance:±20%
- Current Rating (Amps):1.89 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):48mOhm Max
- Q @ Freq:5 @ 25.2MHz
- Frequency - Self Resonant:800MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.075" (1.90mm)
Related Products
FIXED IND 16NH 560MA 220MOHM SMD
- 1: $0.25000
FIXED IND 15NH 560MA 172MOHM SMD
- 1: $0.25000
FIXED IND 390NH 130MA 2.9OHM SMD
- 1: $0.25000
FIXED IND 91NH 120MA 2.3 OHM SMD
- 1: $0.25000
FIXED IND 18NH 520MA 230MOHM SMD
- 1: $0.25000

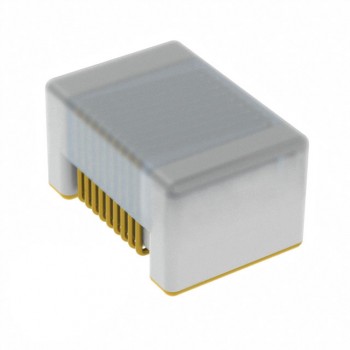

FIXED IND 5.1NH 700MA 150MOHM SM
- 1: $0.25000
FIXED IND 27NH 400MA 298MOHM SMD
- 1: $0.25000
FIXED IND 33NH 400MA 350MOHM SMD
- 1: $0.25000

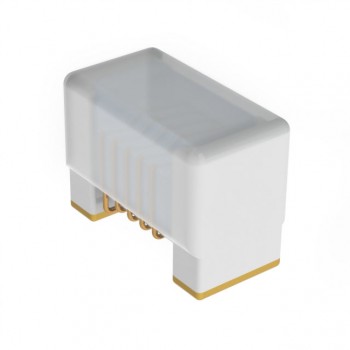

FIXED IND 47NH 210MA 830MOHM SMD
