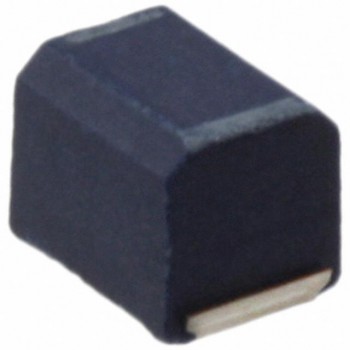

NL453232T-470J-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47UH 140MA 5 OHM SMD
- CategoryFixed Inductors
- Datasheet NL453232T-470J-PF Datasheet
-
ECAD Model
- Share
In Stock: 446
Can ship immediately
Pricing:
- 1$0.43
- 500$0.2266
- 1,000$0.18343
- 2,500$0.17264
- 5,000$0.16725
- 12,500$0.16185
- 25,000$0.15646
- 50,000$0.15106
Quote It
Technical Details
- Series:NL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Last Time Buy
- Type:Wirewound
- Material - Core:-
- Inductance:47 µH
- Tolerance:±5%
- Current Rating (Amps):140 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):5Ohm Max
- Q @ Freq:50 @ 2.52MHz
- Frequency - Self Resonant:10MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
Related Products
FIXED IND 27UH 170MA 3.6 OHM SMD
NL453232T-270J-PF Datasheet- 1: $0.43000
- 500: $ 0.22660
- 1000: $0.18343

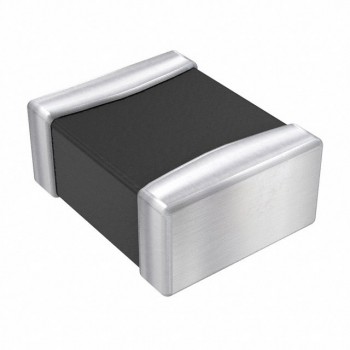

FIXED IND 1.5UH 2A 94 MOHM SMD
