55082713400
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 270NH 180MA 1 OHM SMD
- CategoryFixed Inductors
- Datasheet 55082713400 Datasheet
-
ECAD Model
- Share
In Stock: 467
Can ship immediately
Pricing:
- 1$0.54
- 3,000$0.2144
- 6,000$0.2077
- 15,000$0.201
- 30,000$0.1943
Quote It
Technical Details
- Series:5508
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:270 nH
- Tolerance:±5%
- Current Rating (Amps):180 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1Ohm Max
- Q @ Freq:35 @ 100MHz
- Frequency - Self Resonant:870MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805 (2012 Metric)
- Size / Dimension:0.087" L x 0.055" W (2.20mm x 1.40mm)
- Height - Seated (Max):0.056" (1.42mm)
Related Products
FIXED IND 2.2UH 5.1A 24.7 MOHM
- 1: $0.55000
FIXED IND 100NH 600MA 2 OHM SMD
- 1: $0.55000
FIXED IND 47NH 600MA 1 OHM SMD
- 1: $0.55000

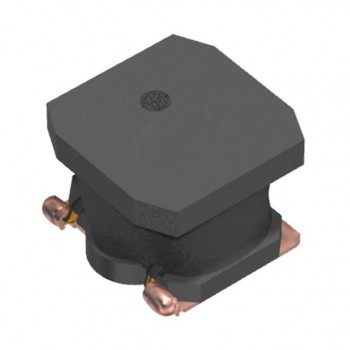

FIXED IND 1.5UH 5.3A 22.1 MOHM
