36501E22NJTDG
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22NH 400MA 300 MOHM
- CategoryFixed Inductors
- Datasheet 36501E22NJTDG Datasheet
-
ECAD Model
- Share
In Stock: 930
Can ship immediately
Pricing:
- 1$0.56
- 2,000$0.2303
- 4,000$0.21675
- 6,000$0.20998
- 10,000$0.20321
- 50,000$0.18966
Quote It
Technical Details
- Series:3650, Sigma Inductors
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:22 nH
- Tolerance:±5%
- Current Rating (Amps):400 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):300mOhm Max
- Q @ Freq:25 @ 250MHz
- Frequency - Self Resonant:2.8GHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.050" L x 0.030" W (1.27mm x 0.76mm)
- Height - Seated (Max):0.024" (0.61mm)
Related Products

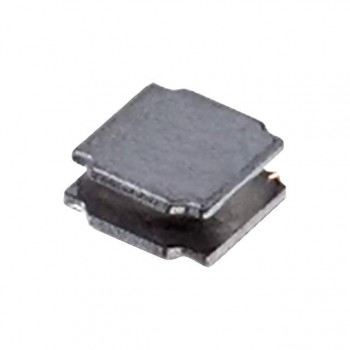

FIXED IND 4.7UH 730MA 399 MOHM
