LQH43NN391K03L

TOKO / Murata
In Stock: 417

Can ship immediately

Pricing:
  • 1$0.57
  • 500$0.30072
  • 1,000$0.24344
  • 2,500$0.22912
  • 5,000$0.22196
  • 12,500$0.2148
  • 25,000$0.20764

Quote It

Technical Details

  • Series:LQH43
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:390 µH
  • Tolerance:±10%
  • Current Rating (Amps):90 mA
  • Current - Saturation (Isat):-
  • Shielding:Unshielded
  • DC Resistance (DCR):9.7Ohm Max



  • Q @ Freq:40 @ 796kHz
  • Frequency - Self Resonant:3.3MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 105°C
  • Inductance Frequency - Test:1 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:1812 (4532 Metric)
  • Supplier Device Package:1812 (4532 Metric)
  • Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height - Seated (Max):0.110" (2.80mm)

Related Products


SDR0604-150YL

FIXED IND 15UH 1.3A 140 MOHM SMD

SDR0604-150YL Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

SDR0604-471KL

FIXED IND 470UH 210MA 3.3OHM SMD

SDR0604-471KL Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

LQH43NN102J03L

FIXED IND 1MH 50MA 25 OHM SMD

LQH43NN102J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

LQH43NN820J03L

FIXED IND 82UH 170MA 2.2 OHM SMD

LQH43NN820J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

LQH43NN242J03L

FIXED IND 2.4MH 25MA 53 OHM SMD

LQH43NN242J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

LQH43NN680J03L

FIXED IND 68UH 180MA 1.9 OHM SMD

LQH43NN680J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

SDR0302-8R2ML

FIXED IND 8.2UH 900MA 200MOHM SM

SDR0302-8R2ML Datasheet
  • 1: $0.57000
  • 2000: $ 0.18785
  • 4000: $0.17680

SDR0302-1R2ML

FIXED IND 1.2UH 2A 70 MOHM SMD

SDR0302-1R2ML Datasheet
  • 1: $0.57000
  • 2000: $ 0.18785
  • 4000: $0.17680

SDR0603-680KL

FIXED IND 68UH 440MA 720MOHM SMD

SDR0603-680KL Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

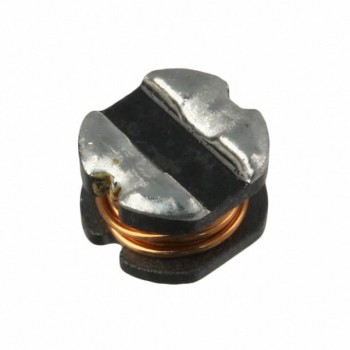

SDR0403-3R9ML
