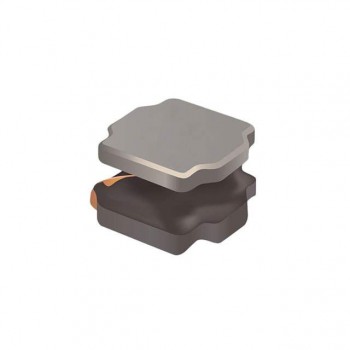

SRN6045TA-470M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47UH 1.6A 200 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRN6045TA-470M Datasheet
-
ECAD Model
- Share
In Stock: 1,138
Can ship immediately
Pricing:
- 1$0.59
- 1,000$0.1734
- 3,000$0.1632
- 5,000$0.1596
Quote It
Technical Details
- Series:SRN6045TA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:47 µH
- Tolerance:±20%
- Current Rating (Amps):1.6 A
- Current - Saturation (Isat):2A
- Shielding:Semi-Shielded
- DC Resistance (DCR):200mOhm
- Q @ Freq:15 @ 1MHz
- Frequency - Self Resonant:12MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max):0.177" (4.50mm)
