744032002
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 620MA 150 MOHM
- CategoryFixed Inductors
- Datasheet 744032002 Datasheet
-
ECAD Model
- Share
In Stock: 1,024
Can ship immediately
Pricing:
- 1$0.64
- 2,000$0.392
Quote It
Technical Details
- Series:WE-LQ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):620 mA
- Current - Saturation (Isat):1.8A
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm Max
- Q @ Freq:20 @ 1MHz
- Frequency - Self Resonant:50MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.091" (2.30mm)
Related Products
FIXED IND 330UH 65MA 16.5 OHM
- 1: $0.64000
- 2000: $ 0.39200
FIXED IND 12UH 290MA 700 MOHM
- 1: $0.64000
- 2000: $ 0.39200
FIXED IND 4.7UH 400MA 100 MOHM

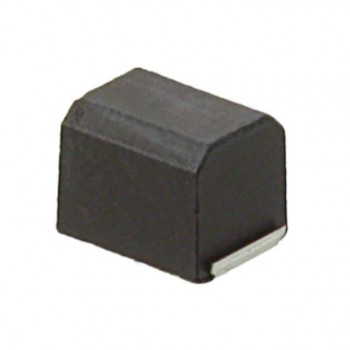

NLFC453232T-4R7M-PF Datasheet- 1: $0.64000
