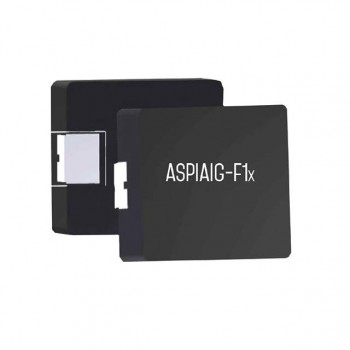

ASPIAIG-F1040-1R5M-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 16A 4.6 MOHM SMD
- CategoryFixed Inductors
- Datasheet ASPIAIG-F1040-1R5M-T Datasheet
-
ECAD Model
- Share
In Stock: 330
Can ship immediately
Pricing:
- 1$1.42
Quote It
Technical Details
- Series:ASPIAIG-F1
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:1.5 µH
- Tolerance:±20%
- Current Rating (Amps):16 A
- Current - Saturation (Isat):33A
- Shielding:Shielded
- DC Resistance (DCR):4.6mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:1040
- Size / Dimension:0.433" L x 0.394" W (11.00mm x 10.00mm)
- Height - Seated (Max):0.157" (4.00mm)
