SDE0805A-330M

J.W. Miller / Bourns
In Stock: 3,412

Can ship immediately

Pricing:
  • 1$0.77
  • 1,000$0.25432
  • 3,000$0.23936
  • 5,000$0.23408

Quote It

Technical Details

  • Series:SDE0805A
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:33 µH
  • Tolerance:±20%
  • Current Rating (Amps):2 A
  • Current - Saturation (Isat):1.6A
  • Shielding:Unshielded
  • DC Resistance (DCR):130mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:13.2MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:1 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Height - Seated (Max):0.217" (5.50mm)

Related Products


FDSD0630-H-1R5N=P3

FIXED IND 1.5UH 8.5A 13 MOHM SMD

FDSD0630-H-1R5N=P3 Datasheet
  • 1: $0.74000
  • 1000: $0.40508
  • 3000: $0.38125

SDR0805-181KL

FIXED IND 180UH 510MA 770MOHM SM

SDR0805-181KL Datasheet
  • 1: $0.70000
  • 1000: $ 0.23120
  • 3000: $0.21760

SDE0805A-1R5M

FIXED IND 1.5UH 5.8A 20 MOHM SMD

SDE0805A-1R5M Datasheet
  • 1: $0.77000
  • 1000: $0.25432
  • 3000: $0.23936

744764015

FIXED IND 1.5UH 370MA 850 MOHM

  • 1: $0.70000

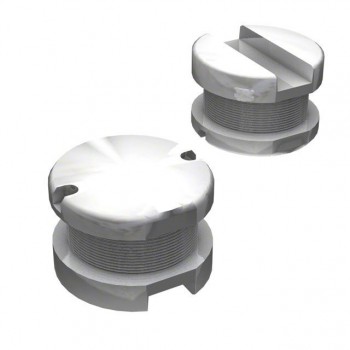

SDR0805-180ML

FIXED IND 18UH 1.6A 100 MOHM SMD

SDR0805-180ML Datasheet
  • 1: $0.70000
  • 1000: $ 0.23120
  • 3000: $0.21760

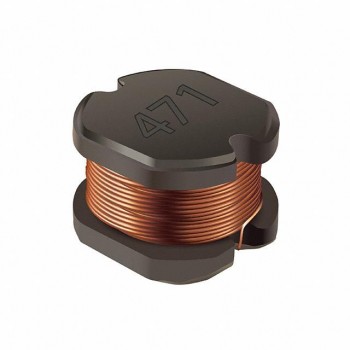

SDE0805A-391K
