SRN8040-150M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15UH 2.4A 70 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRN8040-150M Datasheet
-
ECAD Model
- Share
In Stock: 248
Can ship immediately
Pricing:
- 1$0.71
- 1,000$0.2312
- 3,000$0.2176
- 5,000$0.2128
Quote It
Technical Details
- Series:SRN8040
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:15 µH
- Tolerance:±20%
- Current Rating (Amps):2.4 A
- Current - Saturation (Isat):2.7A
- Shielding:Semi-Shielded
- DC Resistance (DCR):70mOhm Max
- Q @ Freq:15 @ 2.52MHz
- Frequency - Self Resonant:14MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
- Height - Seated (Max):0.157" (4.00mm)
Related Products
FIXED IND 4.7UH 9A 16.5 MOHM SMD
- 1: $1.40000
FIXED IND 10UH 850MA 474 MOHM
- 1: $0.72000
- 2000: $ 0.38418

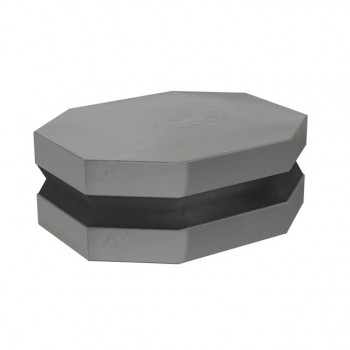

FIXED IND 4.7UH 800MA 406 MOHM
