744050420047
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 470NH 4.5A 22 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 928
Can ship immediately
Pricing:
- 1$0.74
- 3,000$0.39253
Quote It
Technical Details
- Series:WE-LQSH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:470 nH
- Tolerance:±20%
- Current Rating (Amps):4.5 A
- Current - Saturation (Isat):15.5A
- Shielding:Semi-Shielded
- DC Resistance (DCR):22mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:89MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:SMD
- Size / Dimension:0.157" L x 0.146" W (4.00mm x 3.70mm)
- Height - Seated (Max):0.079" (2.00mm)
Related Products
FIXED IND 2.2UH 1.6A 110 MOHM
- 1: $0.74000
- 3000: $ 0.36300

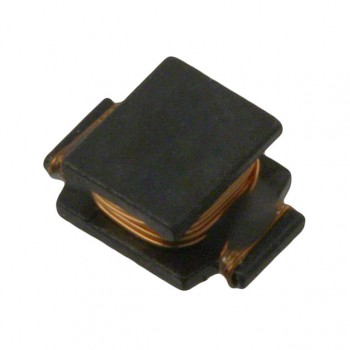

FIXED IND 100UH 110MA 8 OHM SMD
