SDE1006A-100M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10UH 3.8A 60 MOHM SMD
- CategoryFixed Inductors
- Datasheet SDE1006A-100M Datasheet
-
ECAD Model
- Share
In Stock: 507
Can ship immediately
Pricing:
- 1$0.97
- 800$0.38353
- 1,600$0.36222
- 4,000$0.34092
- 5,600$0.3334
Quote It
Technical Details
- Series:SDE1006A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:10 µH
- Tolerance:±20%
- Current Rating (Amps):3.8 A
- Current - Saturation (Isat):4A
- Shielding:Unshielded
- DC Resistance (DCR):60mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:25MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.354" W (10.00mm x 9.00mm)
- Height - Seated (Max):0.228" (5.80mm)
Related Products

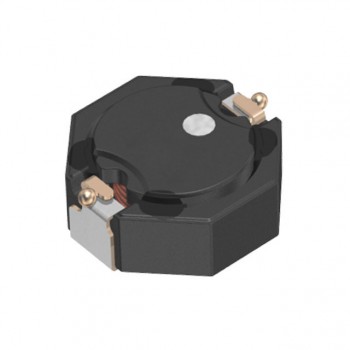

FIXED IND 100UH 530MA 1.28 OHM
LTF5022T-101MR45-LC Datasheet- 1: $0.89000
- 500: $ 0.45900
- 1000: $0.40800

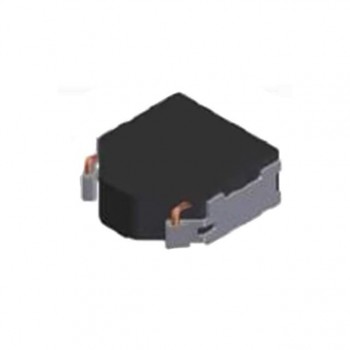

FIXED IND 3.3UH 5.6A 28 MOHM SMD
