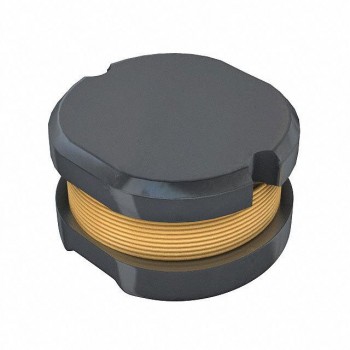

SRU3028-680Y
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 68UH 240MA 1.4 OHM SMD
- CategoryFixed Inductors
- Datasheet SRU3028-680Y Datasheet
-
ECAD Model
- Share
In Stock: 726
Can ship immediately
Pricing:
- 1$0.9
- 600$0.33915
- 1,200$0.27455
- 3,000$0.2584
- 6,000$0.2527
Quote It
Technical Details
- Series:SRU3028
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:68 µH
- Tolerance:±30%
- Current Rating (Amps):240 mA
- Current - Saturation (Isat):280mA
- Shielding:Shielded
- DC Resistance (DCR):1.4Ohm
- Q @ Freq:20 @ 2.52MHz
- Frequency - Self Resonant:7MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.138" L x 0.130" W (3.50mm x 3.30mm)
- Height - Seated (Max):0.118" (3.00mm)
