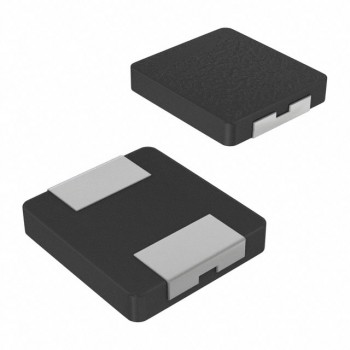

SRP4012TA-5R6M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6UH 1.7A 208MOHM SMD
- CategoryFixed Inductors
- Datasheet SRP4012TA-5R6M Datasheet
-
ECAD Model
- Share
In Stock: 781
Can ship immediately
Pricing:
- 1$1.42
- 4,000$0.53752
Quote It
Technical Details
- Series:SRP4012TA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Carbonyl Powder
- Inductance:5.6 µH
- Tolerance:±20%
- Current Rating (Amps):1.7 A
- Current - Saturation (Isat):2.3A
- Shielding:Shielded
- DC Resistance (DCR):208mOhm Max
- Q @ Freq:10 @ 100kHz
- Frequency - Self Resonant:30MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD
- Supplier Device Package:2-SMD
- Size / Dimension:0.175" L x 0.160" W (4.45mm x 4.06mm)
- Height - Seated (Max):0.047" (1.20mm)
