B82442T1102M050
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 3.51A 25 MOHM SMD
- CategoryFixed Inductors
- Datasheet B82442T1102M050 Datasheet
-
ECAD Model
- Share
In Stock: 691
Can ship immediately
Pricing:
- 1$1.51
- 1,500$0.69041
- 3,000$0.66884
- 7,500$0.64726
- 10,500$0.62569
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±20%
- Current Rating (Amps):3.51 A
- Current - Saturation (Isat):7.33A
- Shielding:Unshielded
- DC Resistance (DCR):25mOhm Max
- Q @ Freq:15 @ 7.96MHz
- Frequency - Self Resonant:111MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:2220 (5650 Metric)
- Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
- Height - Seated (Max):0.209" (5.30mm)
Related Products

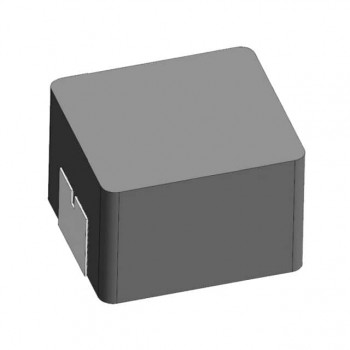

FIXED IND 1UH 15A 6.5 MOHM SMD
