744031101
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 250MA 2.4 OHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 332
Can ship immediately
Pricing:
- 1$1.43
- 1,000$0.77
Quote It
Technical Details
- Series:WE-TPC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 µH
- Tolerance:±30%
- Current Rating (Amps):250 mA
- Current - Saturation (Isat):180mA
- Shielding:Shielded
- DC Resistance (DCR):2.4Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:10MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:3816
- Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
- Height - Seated (Max):0.071" (1.80mm)
Related Products
FIXED IND 3.3UH 1A 220 MOHM SMD
- 1: $1.43000
- 1500: $ 0.79000
- 3000: $0.71000
FIXED IND 1.8UH 2.6A 35 MOHM SMD
- 1: $1.43000
- 500: $ 1.07600
FIXED IND 68UH 640MA 850 MOHM
- 1: $1.43000
- 500: $ 0.82000
FIXED IND 470UH 140MA 5.5 OHM
- 1: $1.43000
- 500: $ 0.82000
- 1000: $0.75000
FIXED IND 470UH 240MA 2.6 OHM
- 1: $1.43000
- 500: $ 0.82000
- 1000: $0.75000
FIXED IND 1MH 230MA 3.5 OHM SMD
- 1: $1.43000
- 300: $ 1.14600
- 600: $1.07600
FIXED IND 100UH 350MA 1.1 OHM
- 1: $1.43000
FIXED IND 8.2UH 13A 15.5 MOHM
- 1: $1.44000

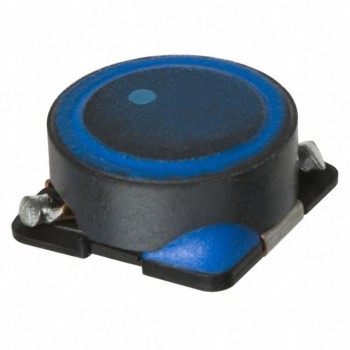

FIXED IND 47UH 1.5A 120 MOHM SMD
