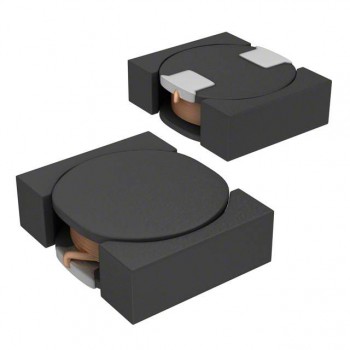

VLF403212MT-220M
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 670MA 710 MOHM
- CategoryFixed Inductors
- Datasheet VLF403212MT-220M Datasheet
-
ECAD Model
- Share
In Stock: 957
Can ship immediately
Pricing:
- 1$1.53
- 1,000$0.7008
- 3,000$0.6789
- 5,000$0.657
- 10,000$0.6351
Quote It
Technical Details
- Series:VLF-M
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):670 mA
- Current - Saturation (Isat):540mA
- Shielding:Shielded
- DC Resistance (DCR):710mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.157" L x 0.126" W (4.00mm x 3.20mm)
- Height - Seated (Max):0.047" (1.20mm)
