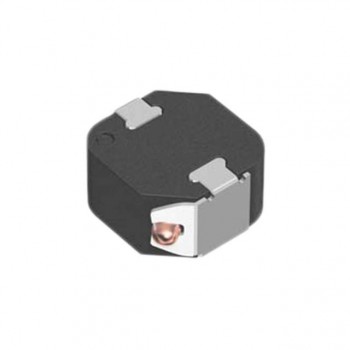

P1166.124NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120UH 530MA 645 MOHM
- CategoryFixed Inductors
- Datasheet P1166.124NLT Datasheet
-
ECAD Model
- Share
In Stock: 880
Can ship immediately
Pricing:
- 1$1.61
- 1,200$0.688
- 3,600$0.6665
- 6,000$0.645
- 12,000$0.6235
Quote It
Technical Details
- Series:P1166NL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:120 µH
- Tolerance:±20%
- Current Rating (Amps):530 mA
- Current - Saturation (Isat):550mA
- Shielding:Shielded
- DC Resistance (DCR):645mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:7MHz
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.297" L x 0.297" W (7.54mm x 7.54mm)
- Height - Seated (Max):0.138" (3.51mm)
