MPX1D0530LR33
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 330NH 16A 5.2 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 1,119
Can ship immediately
Pricing:
- 1$1.62
Quote It
Technical Details
- Series:METCOM MPX
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Metal Composite
- Inductance:330 nH
- Tolerance:±20%
- Current Rating (Amps):16 A
- Current - Saturation (Isat):15A
- Shielding:Shielded
- DC Resistance (DCR):5.2mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.209" L x 0.197" W (5.30mm x 5.00mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 1.5UH 5.6A 35.6 MOHM
- 1: $1.62000
FIXED IND 1UH 3.44A 32 MOHM SMD
VLF403210MT-1R0N-CA Datasheet- 1: $1.62000
- 1000: $ 0.73920
- 3000: $0.71610
FIXED IND 680NH 9.5A 12.2 MOHM
- 1: $1.62000
FIXED IND 3.3UH 4.1A 64.2 MOHM
- 1: $1.62000
FIXED IND 22UH 680MA 720 MOHM
VLF403210MT-220M-CA Datasheet- 1: $1.62000
- 1000: $ 0.73920
- 3000: $0.71610
FIXED IND 6.8UH 2.9A 130.5 MOHM
- 1: $1.62000
FIXED IND 3.3UH 1.95A 98 MOHM

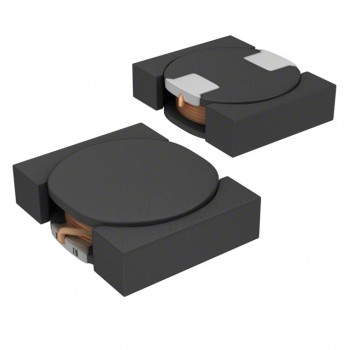

VLF403210MT-3R3M-CA Datasheet- 1: $1.62000
