VLF403215MT-220M-CA
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 950MA 380 MOHM
- CategoryFixed Inductors
- Datasheet VLF403215MT-220M-CA Datasheet
-
ECAD Model
- Share
In Stock: 1,090
Can ship immediately
Pricing:
- 1$1.69
- 1,000$0.80647
- 3,000$0.78045
- 5,000$0.75444
- 10,000$0.72842
Quote It
Technical Details
- Series:VLF-M-CA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):950 mA
- Current - Saturation (Isat):650mA
- Shielding:Shielded
- DC Resistance (DCR):380mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.157" L x 0.126" W (4.00mm x 3.20mm)
- Height - Seated (Max):0.059" (1.50mm)
Related Products
FIXED IND 1.5UH 3.38A 36 MOHM
VLF403215MT-1R5N-CA Datasheet- 1: $1.69000
- 1000: $ 0.80647
- 3000: $0.78045
FIXED IND 1.5UH 2.98A 50 MOHM
VLF403212MT-1R5N-CA Datasheet- 1: $1.69000
- 1000: $ 0.77088
- 3000: $0.74679
FIXED IND 6.8UH 1.54A 131 MOHM
- 1: $1.69000
- 1500: $ 1.07500
FIXED IND 15UH 1.19A 260 MOHM
VLF403215MT-150M-CA Datasheet- 1: $1.69000
- 1000: $ 0.80647
- 3000: $0.78045
FIXED IND 8.2UH 1.5A 146 MOHM
- 1: $1.69000
- 1500: $ 1.07500

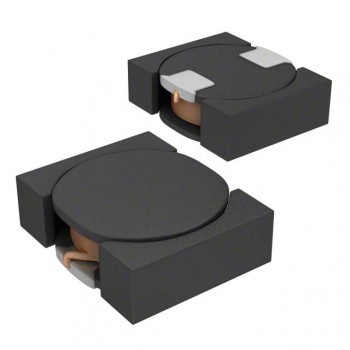

FIXED IND 6.8UH 1.33A 180 MOHM
