P1169.242NL
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.4UH 7.5A 8.1 MOHM
- CategoryFixed Inductors
- Datasheet P1169.242NL Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$1.69
- 10$1.56
- 100$1.092
- 500$0.884
- 1,000$0.806
- 2,500$0.78
Quote It
Technical Details
- Series:P1169NL
- Package:Tray
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:2.4 µH
- Tolerance:±30%
- Current Rating (Amps):7.5 A
- Current - Saturation (Isat):8.1A
- Shielding:Shielded
- DC Resistance (DCR):8.1mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:40MHz
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.482" L x 0.482" W (12.24mm x 12.24mm)
- Height - Seated (Max):0.177" (4.50mm)
Related Products
FIXED IND 3.3UH 2.65A 62 MOHM

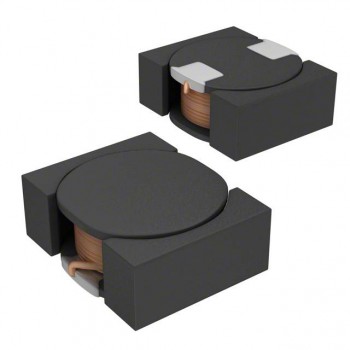

VLF403215MT-3R3M-CA Datasheet- 1: $1.69000
