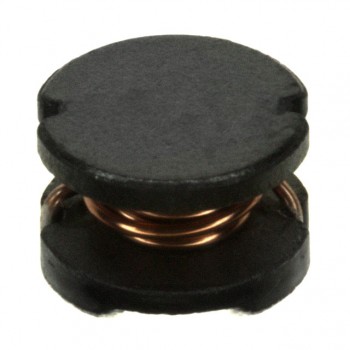

HCMA1305-R47-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 470NH 38A 0.92 MOHM
- CategoryFixed Inductors
- Datasheet HCMA1305-R47-R Datasheet
-
ECAD Model
- Share
In Stock: 392
Can ship immediately
Pricing:
- 1$1.93
- 400$1.06589
- 800$0.94745
- 1,200$0.91785
- 2,800$0.88824
- 10,000$0.82902
Quote It
Technical Details
- Series:HCMA1305
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Iron Powder
- Inductance:470 nH
- Tolerance:±20%
- Current Rating (Amps):38 A
- Current - Saturation (Isat):65A
- Shielding:Shielded
- DC Resistance (DCR):0.92mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.524" L x 0.480" W (13.30mm x 12.20mm)
- Height - Seated (Max):0.197" (5.00mm)
