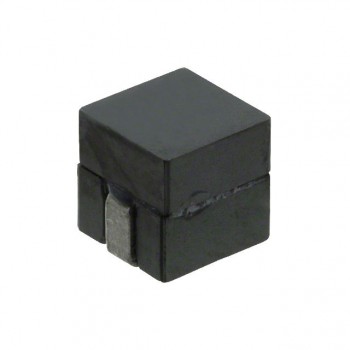

744308025
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 250NH 25A 0.37 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 508
Can ship immediately
Pricing:
- 1$1.78
- 500$1.277
Quote It
Technical Details
- Series:WE-HCM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Manganese Zinc Ferrite (MnZn)
- Inductance:250 nH
- Tolerance:±20%
- Current Rating (Amps):25 A
- Current - Saturation (Isat):44A
- Shielding:Shielded
- DC Resistance (DCR):0.37mOhm
- Q @ Freq:-
- Frequency - Self Resonant:40MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.398" L x 0.276" W (10.10mm x 7.00mm)
- Height - Seated (Max):0.276" (7.00mm)
