P1169.564NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560UH 530MA 1.623 OHM
- CategoryFixed Inductors
- Datasheet P1169.564NLT Datasheet
-
ECAD Model
- Share
In Stock: 171
Can ship immediately
Pricing:
- 1$1.79
- 500$0.884
- 1,000$0.806
- 2,500$0.78
- 5,000$0.754
- 12,500$0.728
Quote It
Technical Details
- Series:P1169NL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:560 µH
- Tolerance:±20%
- Current Rating (Amps):530 mA
- Current - Saturation (Isat):530mA
- Shielding:Shielded
- DC Resistance (DCR):1.623Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:2.2MHz
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.482" L x 0.482" W (12.24mm x 12.24mm)
- Height - Seated (Max):0.177" (4.50mm)
Related Products
FIXED IND 1.5UH 2.86A 44 MOHM
VLF504010MT-1R5N-CA Datasheet- 1: $1.80000
- 1000: $ 0.85932
- 3000: $0.83160
FIXED IND 6.8UH 1.4A 190 MOHM
VLF504010MT-6R8M-CA Datasheet- 1: $1.80000
- 1000: $ 0.85932
- 3000: $0.83160

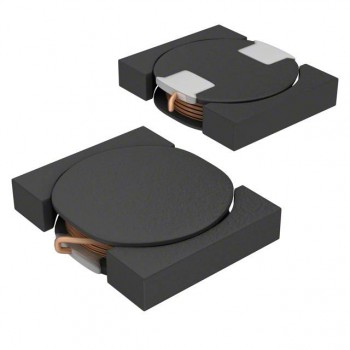

FIXED IND 10UH 1.21A 250 MOHM
